RRG Racing

Highlights

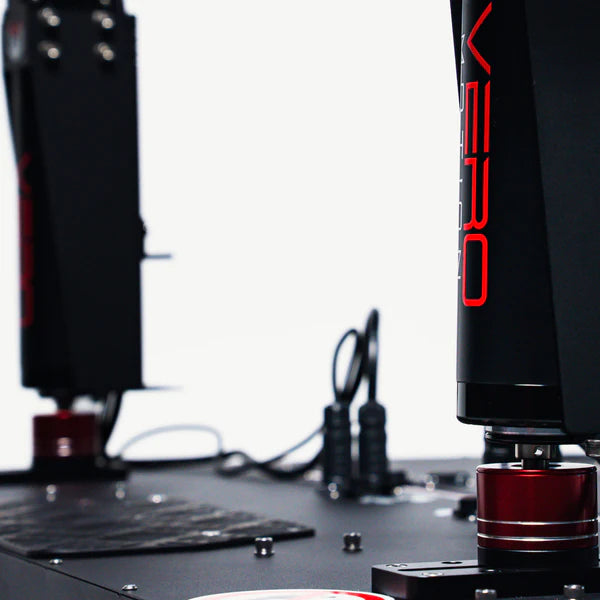

• 4 Champion actuators

• 1 surge actuator

  • Speed: 250 mm/s

  • Force: 80 kg

  • Stroke: 180 mm (7.08")

• 2 traction loss actuators

  • Speed: 250 mm/s

  • Force: 80 kg

  • Stroke: 180 mm (7.08")

• Aluminum extrusion motion base

• 1 external controller + 2 internal controllers

• 1 emergency stop (E-stop) button

• All required assembly and mounting hardware included

• 2 LED strips

• 2 rear LED lights

• SimHub software compatible

• 3-year warranty

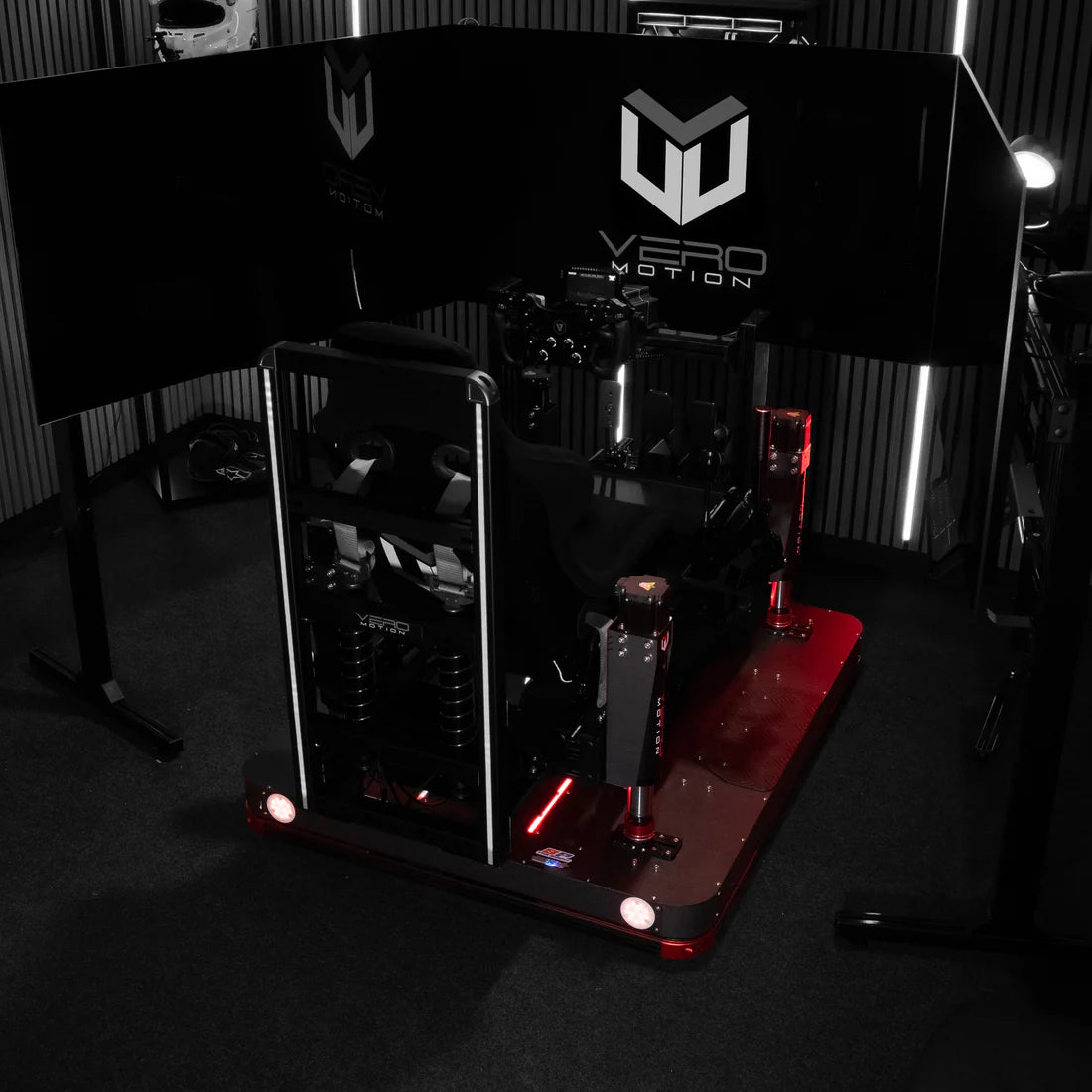

The Legend Motion System redefines high-end simulation through advanced engineering and expanded motion capability. Building upon the three degrees of freedom provided by the Champion motion platform, the Legend system adds three additional actuators to deliver longitudinal surge and front and rear traction loss, resulting in a full 6-DOF experience.

Motion is exceptionally smooth and highly detailed, accurately reproducing bumps, curbing, high-speed cornering forces, understeer, and oversteer. Its innovative mechanical design and broad software compatibility make the Legend system an ideal solution for professional racing simulators, training environments, and advanced enthusiast setups seeking maximum realism and versatility.

The system fits most aluminum extrusion cockpits. The Legend motion base ships pre-assembled, with some installation required. Compatibility confirmation is recommended prior to purchase. Available in combination with any of our 3-DOF motion systems.

Built to order due to high demand. Extended production and shipping timelines may apply.

Available Configurations

Legend

• Degrees of Freedom: 6DOF

• Includes: Champion Motion System

• Upper 3DOF Stroke: 75 mm (3")

• Maximum Speed: 250 mm/s

• Weight Capacity: 240 kg

• Heave: 75 mm

• Surge: 180 mm

• Sway: 180 mm

Legend GT

• Degrees of Freedom: 6DOF

• Includes: Champion GT Motion System

• Upper 3DOF Stroke: 100 mm (4")

• Maximum Speed: 250 mm/s

• Weight Capacity: 320 kg

• Heave: 100 mm

• Surge: 180 mm

• Sway: 180 mm

Legend GTR

• Degrees of Freedom: 6DOF

• Includes: Champion GTR Motion System

• Upper 3DOF Stroke: 150 mm (6")

• Maximum Speed: 250 mm/s

• Weight Capacity: 800 kg

• Heave: 150 mm

• Surge: 180 mm

• Sway: 180 mm
